How to Unfold a Razor Scooter: A Model-by-Model Guide

To unfold a Razor scooter, you must first identify which of four distinct locking systems your model uses: the Anti-Rattle Knob (A5 Prime, E Prime III), the Joint-Release Lever (Spark Series, Chrome Lux), the Folding & Handle Latch system (C35 SLA), or the Push-Release/Pull-Latch (Raven). The correct procedure for one system does not work on another, and forcing it can damage the mechanism.

That specificity is the whole game. A generic “pull the lever” instruction fails when you compare a how to unfold a razor scooter guide for one model to another, because Razor’s engineering diverged across product lines over the years. What works on a kid’s Spark scooter will jam an A5 Prime, and the electric Raven uses a third method entirely.

What follows is a model-by-model breakdown. You’ll learn the exact steps for each system, the audible and visual cues that confirm a proper lock, and how to troubleshoot the common failures owners report on forums. By the end, you’ll be able to unfold any Razor scooter with confidence, knowing which part to move and what sound to listen for.

Key Takeaways

• Razor uses four different locking systems; using the wrong method can break the latch. Identify your model first.
• For the Anti-Rattle Knob (A5 Prime/E Prime III), you must slide, turn counterclockwise, lift, then tighten clockwise.
• A distinct clicking sound on models like the C35 SLA is the only reliable confirmation the stem is locked and safe to ride.
• If a mechanism is stuck, a user recommended lubricating the locking screw with a heavy oil like 30 wt.
• If a mechanism is stuck, apply steady pressure while working the latch; a small pry bar can help free a seized part, but forcing it risks permanent damage.

The 4 Distinct Razor Scooter Unfolding Systems

The biggest mistake is assuming all scooters unfold the same way. Razor’s design teams have not standardized this, so your first job is to look at the joint where the stem meets the deck.

Here’s a quick reference to match what you see to your model and its official procedure.

System Name	Found On These Models	What It Looks Like	Official Unfolding Steps (Summary)
Anti-Rattle Knob	A5 Prime, E Prime III	A large plastic knob with grooves, sometimes with a quick-release lever.	1. Slide/pull knob up. 2. Turn counterclockwise. 3. Raise T-bar until locked. 4. Turn knob clockwise to tighten.
Joint-Release Lever	Spark Series, Chrome Lux	A spring-loaded lever, often red or black, near the folding joint.	1. Place foot on deck. 2. Push/pull the lever. 3. Raise T-bar until it clicks and locks automatically.
Folding Latch & Handle Latch	C35 SLA	Two separate metal latches: a Folding Latch (on the joint) and a Handle Latch (on the stem).	1. Disengage Handle Latch from Handle Hook. 2. Push Folding Latch up against Steer Tube until it clicks.
Push-Release/Pull-Latch	Raven	A two-part mechanism: a release button (A) and a main latch (B).	1. Push the release (part A) upwards. 2. While holding, pull the main latch (part B) down to unfold.

Before you start: Keep fingers and other body parts away from the folding joint. The mechanisms can snap shut with force. Adults must perform or closely supervise the unfolding; do not allow children to assist.

If your scooter isn’t listed above, check the side of the deck or the original box for the model name. The steps below are pulled directly from the owner’s manuals, deviating from them is how people break things.

How to Unfold a Razor Scooter with an Anti-Rattle Knob (A5 Prime, E Prime III)

This system is common on the popular A5 Prime and the electric E Prime III. The knob isn’t just a lock; it’s a tensioning device to eliminate stem wobble. That’s why the procedure has an extra twist, literally.

Step 1: Prepare the Scooter

Place the scooter on a stable, flat surface. If you have an E Prime III, its manual specifies a mandatory first step: remove the plastic covers on the rear axle bolt before unfolding. Discard them. Other models don’t have this, but skipping it on an E Prime III can interfere with the wheel.

Step 2: Release and Turn the Knob

Grip the large, grooved knob. Slide or pull it upwards a centimeter to release its lock. Then, turn it counterclockwise. You don’t need to unscrew it completely, just a quarter to half-turn until you feel resistance ease.

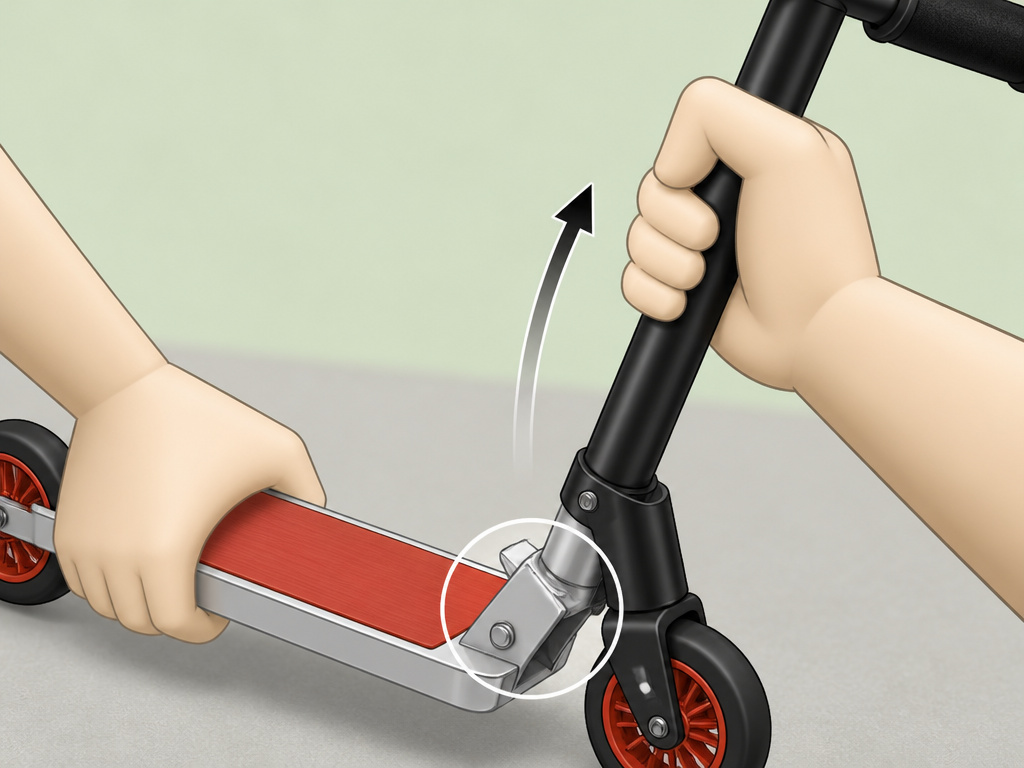

Step 3: Raise and Lock the Stem

With your other hand, grasp the handlebars. Firmly pull the T-bar assembly up and away from the deck. It will pivot up to its full, upright position. You’ll feel it settle into place. You’ll feel it settle into place.

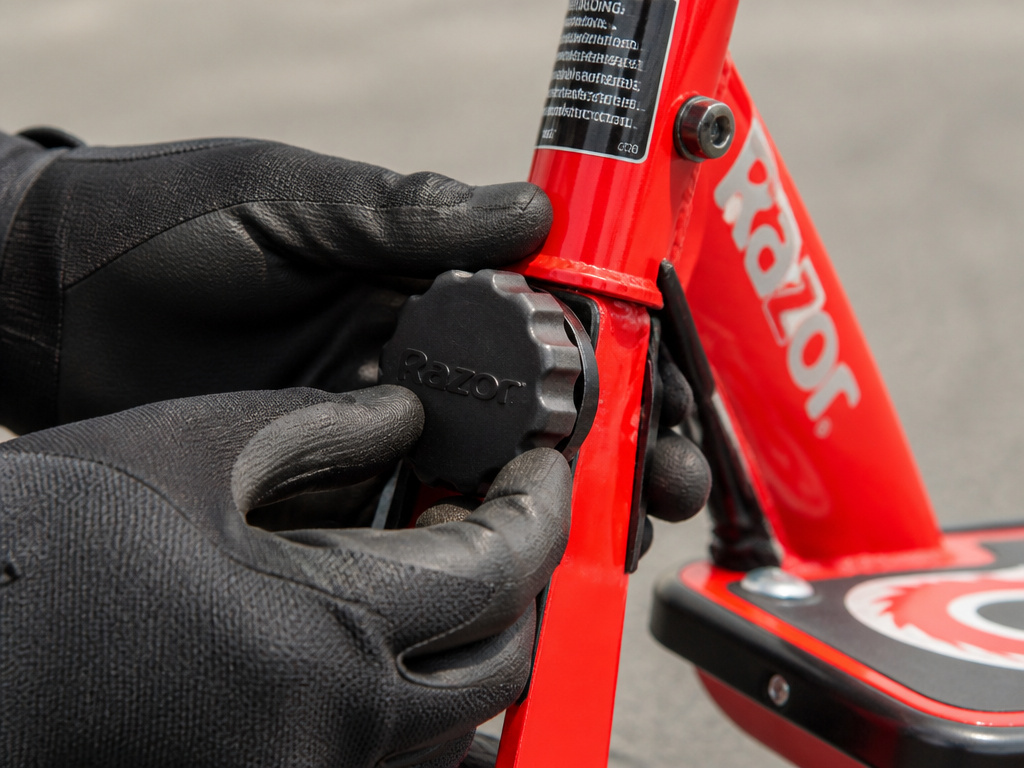

Step 4: Re-Tighten the Knob

This is the step everyone misses. Once the stem is up, turn the knob clockwise to tighten it back down. This secures the joint and engages the “anti-rattle” function. The stem should now have no side-to-side play.

Where this goes sideways: Trying to lift the stem without first sliding and turning the knob counterclockwise. The internal collar stays locked, and you’re just fighting the mechanism. This is how people report the knob feeling “stuck.”

How to Unfold a Razor Scooter with a Joint-Release Lever (Spark Series, Chrome Lux)

The Spark Series and Chrome Lux models use a spring-loaded lever. It’s a simpler, more automatic system, but it requires you to manage the spring tension.

Step 1: Secure the Deck

The manual is specific: place a foot on the deck to stabilize the scooter. This gives you a firm hold and keeps the scooter from sliding away when you pull the lever.

Step 2: Activate the Lever

Find the lever, it’s usually on the side of the folding joint. Push or pull it (the direction should feel natural against the spring’s resistance) and hold it in that position.

Step 3: Raise the Handlebars

While holding the lever, use your free hand to lift the handlebars. Raise them smoothly to the full upright position. As you do, the internal lock should engage automatically. You might hear a click as a pin seats into place.

Step 4: Attach the Handlebars (Spark Series Specific)

On some Spark models, the handlebars are separate. If yours are detached, align the stem with the holes on the T-bar. Push the spring-loaded buttons on the handlebar ends until they audibly snap into the holes. Visually confirm the buttons are fully seated.

The joint-release system uses a spring-loaded lever.

How to Unfold a Razor Scoooter with a Latch System (C35 SLA) or Push-Release (Raven)

These two systems are less common but just as specific. The C35 SLA uses a dual-latch design, while the electric Raven uses a two-handed push-and-pull method.

For the C35 SLA (Folding Latch & Handle Latch):

1. Locate the Handle Latch (a small metal catch on the stem) and the Handle Hook on the deck. Disengage them.
2. Find the Folding Latch on the main joint. Push it firmly upwards until it clicks against the Steer Tube.
3. The manual states a clicking sound confirms the lock. No click means it’s not secure. Do not ride.

For the Raven (Push-Release/Pull-Latch):

1. Identify the two parts: the release (A) is typically a smaller button, and the latch (B) is the larger main lever.
2. Press the release (A) upwards and hold it.
3. While holding the release, pull the main latch (B) down.
4. The stem will release and can be raised. The Raven also has a separate handle latch and hook used only for carrying the scooter when folded.

The Raven’s method requires two simultaneous actions. Trying to just pull the big latch won’t work, you must depress the secondary release first.

Troubleshooting a Stuck or Difficult Mechanism

A scooter that hasn’t been unfolded in months might fight you.

First, Don’t Force It

If the knob won’t turn or the lever won’t budge, stop. Applying extreme force can strip plastic threads or bend a metal latch. One Reddit user’s story is instructive: their lever was stuck solid. They had to push the handlebars forward, push down the red tab, and use a small pry bar to gently pop the lever up. Once freed, it worked smoothly again.

Diagnose the Stuck Knob

For an A5-style knob that won’t turn, the problem might not be dirt. A bike mechanic suggested a stuck A5 DLX knob might be due to a broken spring inside, not a lubrication problem. If the knob spins freely but doesn’t tighten or loosen, the internal spring has likely failed. Lubrication won’t fix that.

The Maintenance Fix

If the mechanism is stiff but moves, maintenance is your answer. A user recommended lubricating the locking screw on an A5 scooter with a heavy oil like 30 wt. Clean off any visible grit first with a dry cloth.

When to Contact Razor

If you’ve cleaned and lubricated the mechanism, applied careful pressure, and it still won’t operate correctly, it may be a manufacturing defect. It’s worth a try if your scooter is new.

Critical Safety Checks Before Riding

Unfolding the scooter is just step one. Before anyone gets on, you must perform a safety check. This isn’t optional, it’s in every manual.

Weight and Age Limits Are Absolute

Here are the hard limits from the manuals:

• A5 Prime, E Prime III, Chrome Lux: Do not exceed 220 lb (100 kg).
• Spark Series: Do not exceed 143 lb (65 kg) for the Spark, 110 lb (50 kg) for the S Spark.
• Raven: Do not exceed 155 lb (70 kg).

Age limits are just as serious. The Spark Series and Chrome Lux are not for children under 8 years. The Raven has a recommended minimum rider age of 13.

The Pre-Ride Visual Inspection

• Locking Pin: Visually confirm the pin or latch is fully seated in its hole. On the C35 SLA, listen for that click.
• Fasteners: Check that all bolts, especially those on the stem and handlebar clamp, are tight. Manually try to wiggle the stem; there should be no play.
• Wheels & Brake: Spin the wheels to ensure they turn freely.

Common mistake: Assuming “unfolded” means “ready to ride.” A scooter can be upright but not locked. The lock is a separate, positive engagement you must verify.

For electric models like the E Prime III and Raven, remember: the motor will engage only when the scooter is moving at least 3 mph (5 km/h).

Routine Care to Keep the Folding Joint Working Smoothly

A little prevention saves the headache of a stuck mechanism.

Monthly Maintenance

Once a month, take a look at the folding joint. Wipe away any accumulated dirt, sand, or road salt with a dry cloth. For knobs and levers, apply a single drop of lubricant to the pivot points or threads. For a sticking knob, a user recommended applying a drop of heavy oil like 30 wt. Wipe off any excess.

Storage Matters

Don’t store the scooter folded in a damp garage or basement. Moisture promotes rust in the metal parts of the latch.

The One-Minute Post-Ride Check

After a ride, before you fold it, quickly operate the lever or knob. If it feels grittier than usual, that’s a sign to clean it sooner rather than later.

How to place your scooter on stable ground before unfolding

Before you touch any latches or levers, find a solid, flat surface to work on. The deck of the scooter needs to be stable so it doesn’t tip or slide while you’re unfolding the handlebars. This gives you a firm base to push or pull against, making the mechanism easier to operate. It also prevents the scooter from accidentally collapsing while you’re handling it, which could pinch your fingers. This initial step is simple but critical;

Frequently Asked Questions

How do you unfold a Razor scooter?

You unfold a Razor scooter by following the specific procedure for your model’s locking system. The four main systems are the Anti-Rattle Knob (slide, turn, lift, tighten), the Joint-Release Lever (press lever and lift), the Dual Latch system (disengage one latch, push the other), and the Push-Release/Pull-Latch (push a button while pulling a latch). Always start by identifying which system your scooter has.

Why is my Razor scooter not unfolding?

Your Razor scooter is likely not unfolding because you are using the wrong technique for its specific locking system, or the mechanism is stuck from dirt, corrosion, or a broken internal part. First, verify your model and re-read the correct steps. If it’s stuck, try applying steady pressure while working the latch, and consider cleaning and lubricating the joint. If it still won’t budge, a component may be broken.

What does a locked Razor scooter sound like?

Properly locked Razor scooter often makes a distinct clicking sound. The C35 SLA manual explicitly mentions a “clicking sound” for confirmation. Other models may have a softer click or a solid thunk as a locking pin seats. For the C35 SLA, a clicking sound confirms the lock.

How do I keep my scooter’s folding mechanism from sticking?

To keep your scooter’s folding mechanism from sticking, perform routine monthly maintenance. Clean dirt and debris from the joint, and apply a drop of heavy oil (like 30 wt.) to the threads of knob systems or a dry silicone spray to lever pivots. Avoid storing the scooter in damp conditions, and never force the mechanism if it feels resistant, clean it first.

Before You Go

The right answer isn’t a single set of steps. It’s knowing which set of steps applies to your specific scooter. Treating a Razor A5 knob like a Spark lever is how people break the $30 part that holds the whole thing together.

If you only remember one thing, let it be this: find your model name and match it to the system. The weight limits and age recommendations are printed in the manual for a reason, they’re the result of stress tests, not suggestions. A folding mechanism that’s stiff today will be broken tomorrow if you muscle through it. A drop of oil and two minutes of care beats a warranty claim every time.

For most riders, the process becomes automatic after a few tries. Your hands will learn the specific sequence, the slide-turn-lift-tighten of the A5, or the press-and-raise of the Spark. That muscle memory is the real goal. Once you have it, you can stop thinking about the how and just ride.
